A construction survey gives you a clear picture of your lot before you add on to your home. It shows where the house actually sits, how much open ground surrounds it, and what rules might limit where a new room can go. Homeowners often assume the yard is bigger than it really is, and that guess can stall a permit for weeks. When you measure the property first, you swap those assumptions for real numbers. That head start helps your designer and your local reviewer work from the same set of facts instead of arguing over inches.

Reading the Proposed Addition Against the Recorded Lot

Public records hold the legal shape of every lot. They list the property’s exact size and the direction of each boundary line. When a surveyor starts your project, the first move is to line up your addition’s planned outline against those recorded numbers. If the new footprint reaches past what the record allows, you learn that early, long before any concrete sets.

That comparison also catches small mistakes hiding in the design. A drawing might place the addition a foot too wide or angle it slightly off the lot line, and those slips are easy to miss on a screen. Fixing them on paper costs almost nothing, while fixing them in the field costs real money and real time.

Pinpointing the Existing House Before Expansion Plans Advance

Before anyone draws the new room, the crew needs to know where the current house really stands. The surveyor locates walls, the foundation, a porch and any attached deck right in the field. These points matter because paper plans rarely match the ground down to the inch, and even a careful builder works from what was intended, not what got built.

Older homes tend to drift from their first blueprints, sometimes by more than a foot after decades of small repairs. With the real position of the house locked in, your designer can join the addition to the existing wall without guessing. That accuracy keeps the two parts lined up, so the roofline and floor heights meet the way they should.

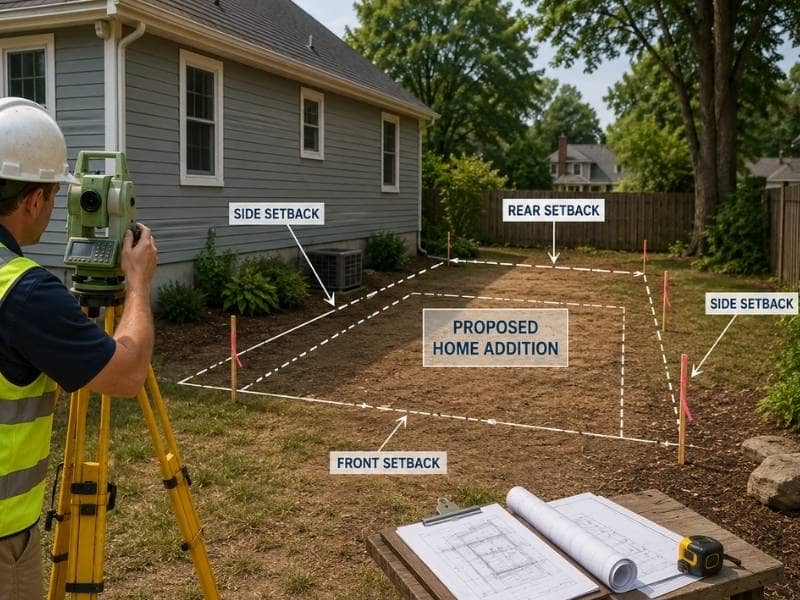

Measuring the Space Remaining Around the New Footprint

Local zoning sets a minimum gap between your walls and each property line. After the surveyor marks the new footprint, the field team measures how much room is left on every side. Those distances tell your designer whether the addition fits as drawn or needs a trim.

The measurements usually focus on three areas:

•      The side yards, where additions most often run tight against the limit

•      The rear yard, which many owners forget until the plan is nearly finished

•      The front setback, which tends to be the strictest of the three

When the numbers come back short on any side, you can reshape the room now rather than face a rejection later. Even a few inches can decide whether a plan clears review or bounces back for changes. Catching a tight setback now is one of the cheapest fixes in the whole process.

Uncovering Easements That May Restrict the Addition

An easement is a slice of your land that someone else has a legal right to use. A utility company might hold one for buried lines, or a neighbor might have a recorded path across your yard. These rights often sit quietly for years, so most owners forget they exist until a survey brings them back to the surface.

During the research phase, the surveyor pulls the deed and other recorded documents to find them. If an easement crosses the exact spot you picked for the addition, the room may have to move or shrink to stay clear of it. Building over one can lead to forced removal later, so knowing early saves you from an expensive surprise. In some cases the discovery even changes which side of the house makes the most sense for the addition.

Turning Field Control Into Reliable Construction Placement

Once your reviewer approves the design, the survey does not just sit in a drawer. The same reference points that measured the lot become the marks that guide the build. Crews rely on them to set the corners of the addition exactly where the plan calls for, then check back against those points as the walls go up. Each check confirms the build has not wandered off the approved line.

Without that fixed control, workers would eyeball the location, and small errors would stack up fast across a whole foundation. Strong field control ties the paper design to the real dirt, so the finished room lands where everyone agreed it would. That link between plan and property is what keeps the whole project honest from start to finish.

Frequently Asked Questions

Can construction surveying determine whether my addition will fit?

It records the true conditions of your property and places the proposed room where the plans intend, so the right professionals can judge the fit. The survey supplies the measurements, while your designer and the local office weigh those numbers against the rules and make the final call.

Should the survey occur before architectural plans are finalized?

Measuring the property early gives your architect solid dimensions before the drawings lock the addition’s position. Starting with real numbers usually means fewer redesigns later, which keeps the project moving instead of circling back.

Does a construction survey replace permit approval?

No. It hands over accurate location data, yet the permitting office still decides whether your project meets the rules for your area. One provides the facts, and the other grants the permission.
