Most layout mistakes are cheap to fix on day one and expensive by week ten. A footing set two feet off, a sewer line laid at the wrong slope, or a curb built outside the right-of-way can mean tear-outs, delays, and hard talks with the owner. The right construction surveyor, brought in at the right times, keeps those errors from reaching concrete.

A construction surveyor is a licensed surveyor, or a crew working under one, who places design points on the ground and checks that the work matches the plans. This guide is written for contractors, developers, and owners managing a build. The main takeaway is simple. Plan survey visits around your schedule from the start, instead of calling for help once something already looks wrong.

Project Stages That May Require a Construction Surveyor

Most projects need survey support at several points during the build. The exact list depends on project type, size, and what the contract and permits call for. A single-family home may need only a few visits, while a commercial site can need a crew out every week.

Typical stages that call for survey work include:

• Before construction, to set control and confirm existing conditions
• During clearing and rough grading
• For underground utilities and storm structures
• At foundations and building corners
• For curbs, paving, and final grades
• At closeout, for as-built records

Not every job needs every stage. Ask your surveyor to review the plans and bid documents and tell you which visits make sense. That conversation is much easier before the schedule is locked.

When Design Plans Must Be Transferred to the Site

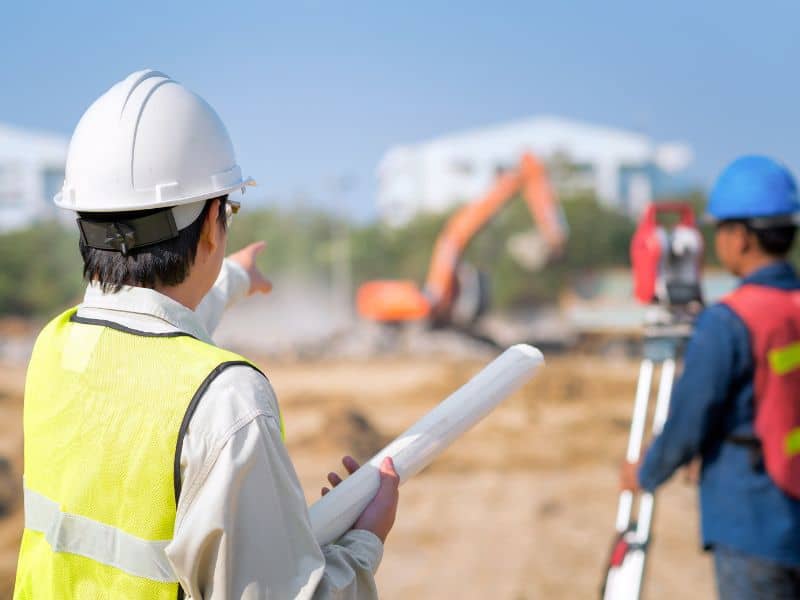

The first clear trigger is layout. Once plans are approved and you’re ready to move dirt, a construction surveyor turns drawings into physical marks on the ground. This work is called construction staking.

Setting Survey Control

Before staking starts, the surveyor sets control points. These are stable, measured reference points placed around the site, away from heavy equipment traffic. Every stake that follows ties back to them, so the whole job stays on one consistent frame.

Checking the Plans Before Staking

A careful surveyor also checks the plans against the site. Dimensions that don’t close, elevations that don’t match existing grades, or a building that crowds a setback line can all show up here. Finding those conflicts before crews start digging is one of the cheapest fixes on any project.

Survey Needs as Site Work and Building Progress

As work moves forward, the surveyor’s role grows from layout into layout plus checking. Each phase has its own points to stake and verify. Crews work faster when the marks they need are already in place before they arrive.

During grading, stakes show cut and fill depths so operators know how much soil to remove or add. For utilities, the surveyor marks pipe locations and flow line elevations, which set the slope water will follow. On the building itself, the focus shifts to foundation corners, column lines, anchor bolts, and finished floor elevations.

Many contractors ask for a check after forms are set and before concrete is poured. It takes little time and catches errors while they’re still easy to correct. Some jurisdictions or lenders may also ask for a foundation location survey at this point, so confirm the requirement with your permit office or lender.

When Field Changes Require Updated Survey Measurements

Plans rarely make it through a project unchanged. A buried utility turns up where nobody expected it. An owner moves an entrance, or the engineer revises a storm structure after review.

Each of these changes can affect points that were already staked. Call the construction surveyor whenever a revision touches locations, elevations, or grades. Building from old stakes after a plan change is one of the most common causes of rework.

Stakes also get lost. Equipment knocks them over, weather washes them out, and grading buries them. If key marks are gone or look disturbed, ask for them to be reset instead of guessing from nearby points. Keep a record of every field change too, because it will matter when the as-built survey is prepared.

Planning Survey Support Around Construction Milestones

The best way to use a construction surveyor is to plan visits around the milestones already on your schedule. Pair survey requests with events like grading start, utility installation, foundation pours, and paving. That way crews aren’t left standing around waiting for layout.

Give the survey team clear notice. Many firms need a few days to schedule a crew, and busy seasons can stretch that lead time. On larger jobs, a standing weekly visit often works better than scattered calls.

Plan for closeout early. An as-built survey records what was actually built, including building locations, utilities, and final grades. Some municipalities, lenders, or owners require one before final approval or payment, and the rules vary by jurisdiction and project scope. Ask about as-built needs at the start so the surveyor can collect data as the work goes in.
